| Jenis pembayaran: | T/T |
| Min. Memesan: | 1 Set/Sets |
| Pelabuhan: | Shanghai |
Naungan:
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: Pakistan, India, Russia, Thailand, Japan, Malaysia
Showroom Location: Indonesia, Pakistan, India, Russia, Thailand, Japan
Condition: New
Bahan: Baja karbon
Material Feature: Fire Resistant
Struktur: Konveyor sabuk
Brand Name: Shuangqi
Power: 0.4kw - 22kw
Dimension(L*W*H): Customer Request
Warranty: 1 Year, 1 Year
After-sales Service Provided: Online Support, Engineers Available To Service Machinery Overseas
Lebar Atau Diameter: 800mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Jenis Pemasaran: Produk Biasa
Warranty Of Core Components: 1 Year
Komponen Inti: Motor
Aplikasi: Industry

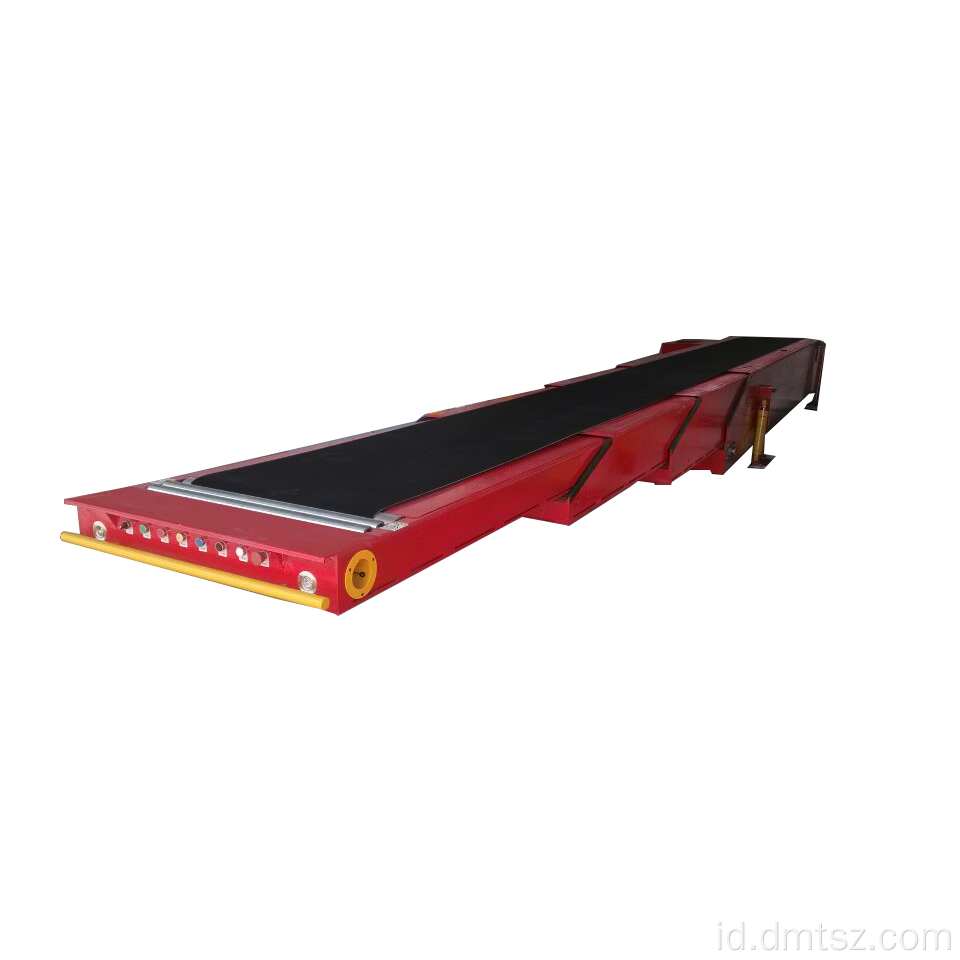

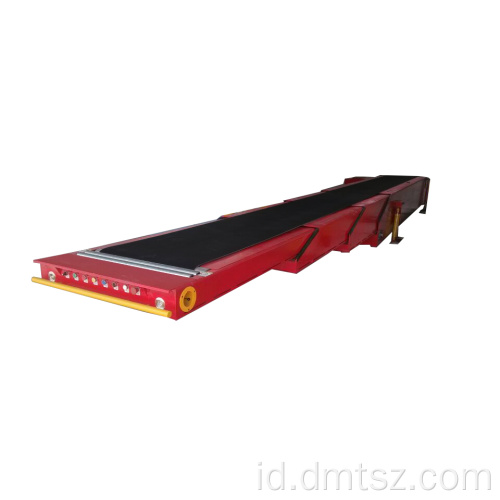

Product Name : Telescopic Belt Conveyor
Nama: Belt Conveyer
Keyword: Transfer Conveyor
Color: Customers' Request
Belt Material: Pvc Pu Rubber Steel Rubber
Frame Material: Cabon Steel
Feature: High Efficiency
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other
Place Of Origin: Jiangsu, China
Voltage: 220v/380v
Sertifikasi: Iso9001:2008/Ce
| Menjual unit | : | Set/Sets |
| Tipe paket | : | kotak kayu |
| Contoh pada gamba | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

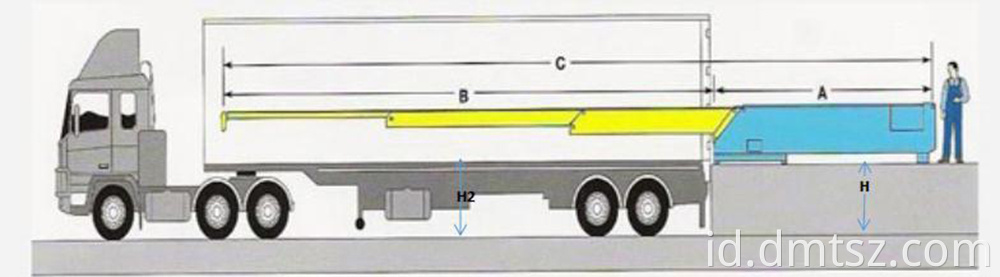

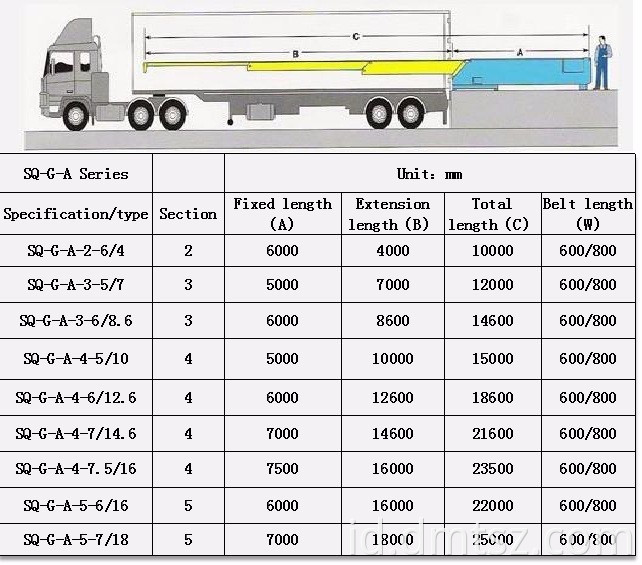

| Explanation about the telescopic conveyor | |||||
| Part A | Part B | Part H | Part H2 | ||
| Fixed length | Extended length | loading plat height | Height between the earth and plat of the truck | ||
| Specfication | Section |
Part A (length M) |
Part B (length M) |
Weight (Estimated) |
Min height (conveyor) |
| SQ-G-A-4-5/10 | 4 | 5 | 10 | 3t | 850mm |
| Belt Width(mm) | Voltage | Belt | Motor | Electrical element | Package |
| 600/800/1000 |
220/380V 3-phase |
Ammerral PVK | SEW/NORD | Shneider | Wooden case |
|
SQ-G-A-4-5/10 "SQ" means shuangqi our company's name, "G" means this is fixed style, the equipment should be fixed on the ground. "A" nonsonse, "4" means this is a four section conveyor, "5" means the fixed part(Part A) is 5 meters long. "10" means the extended part(Part B) is 10 meters long. |
|||||

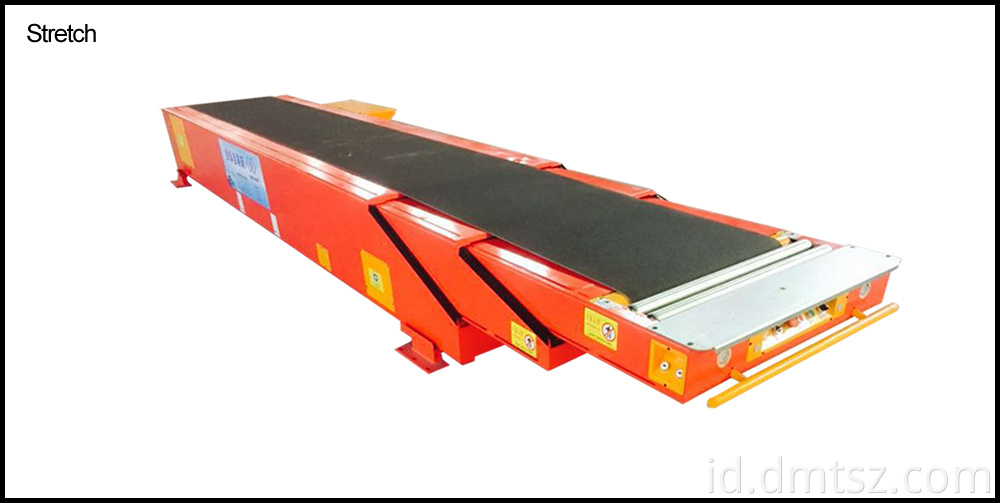

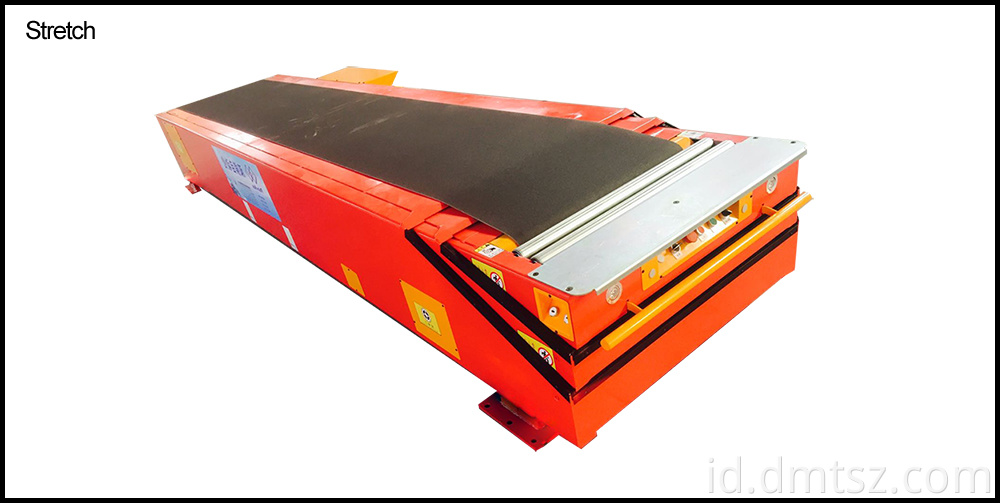

Gambar -gambar berikut hanya untuk menunjukkan status peregangan dan retraksi dari konveyor teleskopik.
Semua spesifikasi lainnya
Q1. Apa istilah pembayaran Anda?
A: Ketentuan pembayaran adalah T/T atau pembayaran yang wajar lainnya dapat diterima.
Q2. Berapa waktu pengiriman Anda?
A: Waktu pengiriman produk reguler kami adalah 40 hari kalender. Waktu pengiriman produk yang disesuaikan tergantung pada persyaratan pelanggan.
Q3. Apa istilah pengiriman Anda?
A: Baik CIF dan FOB diterima.
T4. Dapatkah konveyor yang dapat diperpanjang digunakan untuk memuat dan membongkar?
A: Ya. Sabuk dapat dijalankan baik memuat dan membongkar.
Q5. Bisakah kamu melakukan oem?
A: Ya, kami dapat melakukan OEM dan juga dapat mencetak logo Anda pada mesin.
Q6. Bisakah Anda merancang sesuai dengan kebutuhan kami?
A: Tentu saja, kami memiliki tim insinyur profesional untuk mendesain.
Q7. Bisakah Anda membantu kami menghubungi agen pengiriman di port pemuatan Anda?
A: Ya, kami memiliki penyerahan pengiriman terbaik kami yang selalu memberikan layanan dan harga terbaik kepada kami. Juga Anda tidak punya masalah untuk memeriksa pengiriman sendiri.
